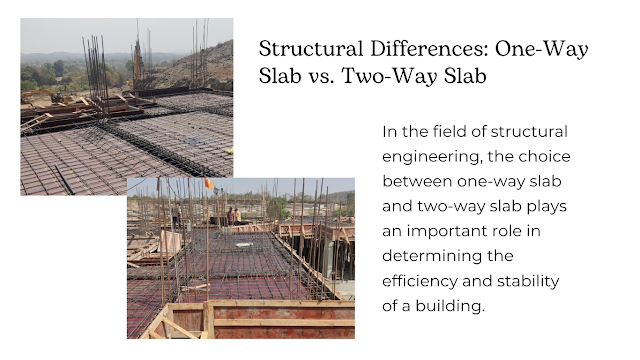

Structural Differences: One-Way Slab vs. Two-Way Slab

& Introduction:

In the field of structural engineering, the choice between one-way slab and two-way slab plays an important role in determining the efficiency and stability of a building. These two types of slabs are fundamental components of structural systems, each with their own unique characteristics and applications. In this blog, we will highlight the key differences between one-way slabs and two-way slabs, one way slab formula, one way slab reinforcement details, highlighting their structural behaviour, design considerations and practical applications. one way slab formula



F What is One-Way Slab?

One-way slabs, as the name suggests, distribute the load primarily in one direction – either along the short or long span. Typically used in buildings with long corridors or narrow bays, one-way slabs are more cost effective when spans vary significantly. The primary reinforcement is placed along the short span, ensuring that the slab efficiently resists the bending moments and shear forces applied in that direction.

One-Way Slab

F Main features of one-way slab:

Spanning direction: One-way slabs span in a single direction, either along the short or long span of the slab.

Primary Reinforcement: Primary reinforcement is concentrated with short spans, providing increased strength against bending moments.

Applications: Suitable for structures with long bays, such as corridors or narrow buildings, where the load is predominantly in one direction.



F What is Two-Way Slab?

 Two-way slabs, on the other hand, distribute the load in both directions – along both short and long spans. This type of slab is more versatile and is typically used in square or rectangular structures where the spans are relatively equal. Two-sided slabs can be further classified as flat slabs, flat plate and waffle slabs, each with their own distinct construction and reinforcement characteristics.

Two-Way Slab

F Main features of two-way slab:

 Even distribution of load: Two-way slabs efficiently distribute load in both short and long directions.



Biaxial Bending: These slabs exhibit biaxial bending behaviour, requiring balanced distribution of reinforcement in both directions.



Versatility: Ideal for square or rectangular structures where spans are relatively equal, providing flexibility in architectural design.



! Load distribution:

 One-way slabs distribute load primarily in one direction, making them suitable for structures with varying elongation in one dimension.

Two-way slabs distribute load in both directions, providing greater versatility for different structural layouts.



! Slab reinforcement:

 In one-way slabs, the primary reinforcement is concentrated along the short span, optimizing strength against bending moments.

Two-way slabs require balanced reinforcement in both directions to effectively prevent biaxial bending.



! Width-to-depth ratio/One way two way slab ratio

 One-way slabs often have a higher span-to-depth ratio than two-way slabs, making them more economical for specific applications.

One way = longer span /short span ≥ 2

Two way slab = longer span /short span < 2

 F Conclusion:

 Choosing between one-way slab and two-way slab is an important decision in structural engineering, which is influenced by factors such as architectural design, load distribution, and cost-effectiveness. While one-way slabs excel in certain applications with varying spans, two-way slabs offer versatility and efficiency in more diverse structural configurations. Ultimately, the choice between these two types of slabs depends on a careful analysis of the specific requirements and constraints of the building project.
